What it delivers

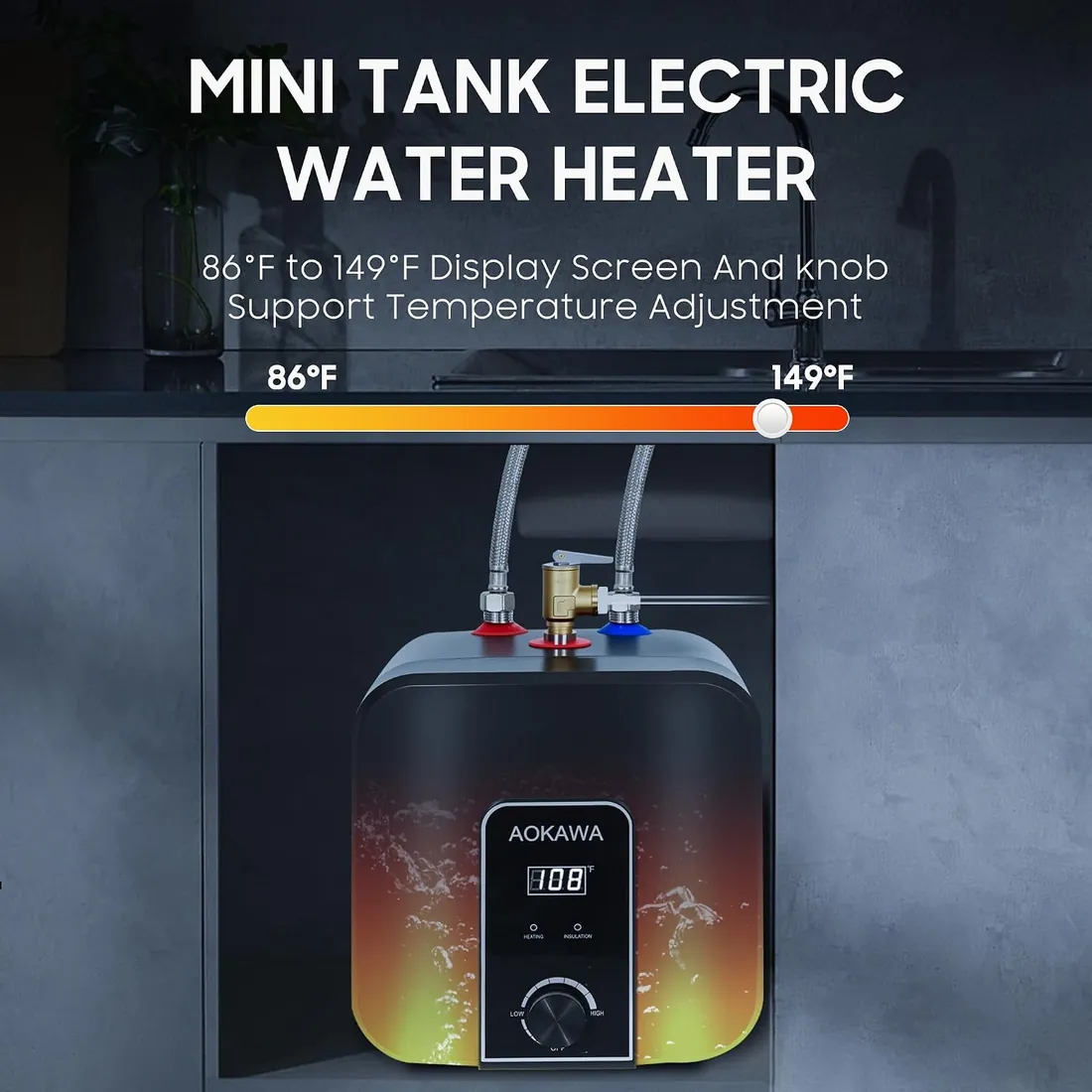

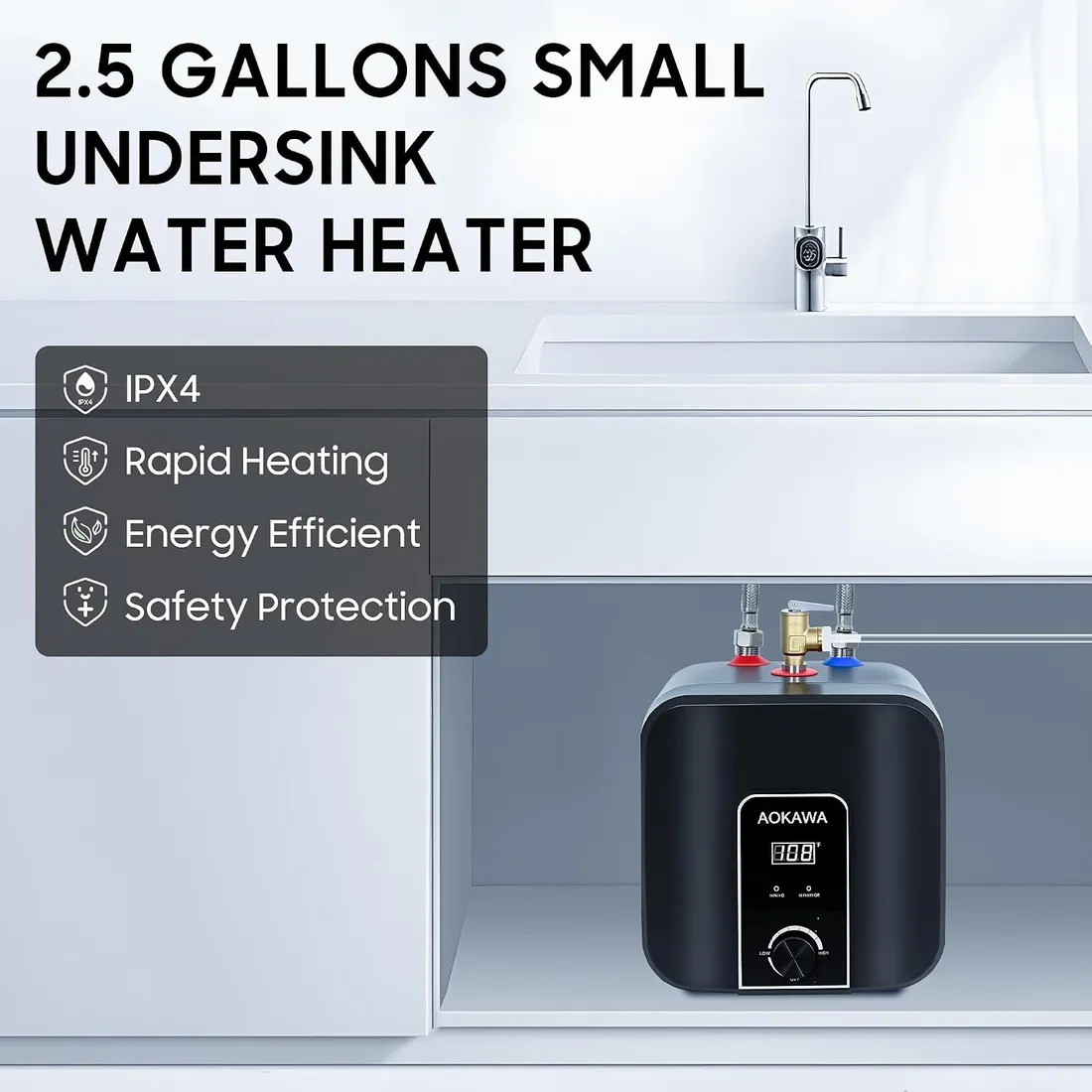

The Aokawa AT-25G-US01 2.5-Gallon Mini-Tank Water Heater is a mini-tank heater holding 2.5 gallons, rated at 1.5 kW on 120 volts.
It stores a few gallons of hot water right at the fixture, so the tap runs hot at once instead of waiting for the main heater.
It runs on 120 volts, so no new 240-volt circuit is needed in most installs.
Other listed details: connections: 3/4" npt; material: Acrylonitrile Butadiene Styrene, Stainless Steel; model: AT-25G-US01.
The listing gives dimensions of 14.42 in (W) x 14.42 in (H) and teflon tape * 1, converter hose * 2, mounting kits * 1, fine water pipe * 1, t&p valve * 1, 3-way valve * 1 in the box.
Right unit for this house?
Install it when
- One sink far from the main heater
- Wet bars, garages and offices
Look at another unit when
- Showers or whole-house use
- Long continuous draws
Strengths and trade-offs
Strengths
- 2.5-gallon tank
- 120 V
- Hot water at the tap in seconds
Trade-offs
- Runs out after its stored gallons
- Needs room under the sink
Install limits
- Figures are the maker's or seller's own. Flow at a rise is our estimate from the input; gas, venting and electrical work needs a licensed professional.
Rated performance
Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.
| Model number | AT-25G-US01 | Retailer |
|---|---|---|
| Tank | 2.5 gal | Retailer |
| Dimensions (seller) | 14.42"W x 14.42"H | Retailer |
| Features (seller) | Anti-Freezing Protection, Dry Combustion Protection, LED Display, Overheat Protection, Temperature Lock Anti-Freezing Protection, Dry Combustion Protection, LED Display, Overheat Protection, Temperature Lock | Retailer |
| Power | 1.5 kW | Retailer |
| Voltage | 120 V | Retailer |
| Material | Acrylonitrile Butadiene Styrene, Stainless Steel | Retailer |
| Connections | 3/4" npt | Retailer |
Rival units at this flow
More point-of-use water heaters rated for similar demand
Final verdict
A sensible mini-tank heater for one sink far from the main heater.
